Top-notch European CNC laser cutting machines and press brakes at unbeatable prices.
CNC Press Brakes (60, 100, 135 TON )

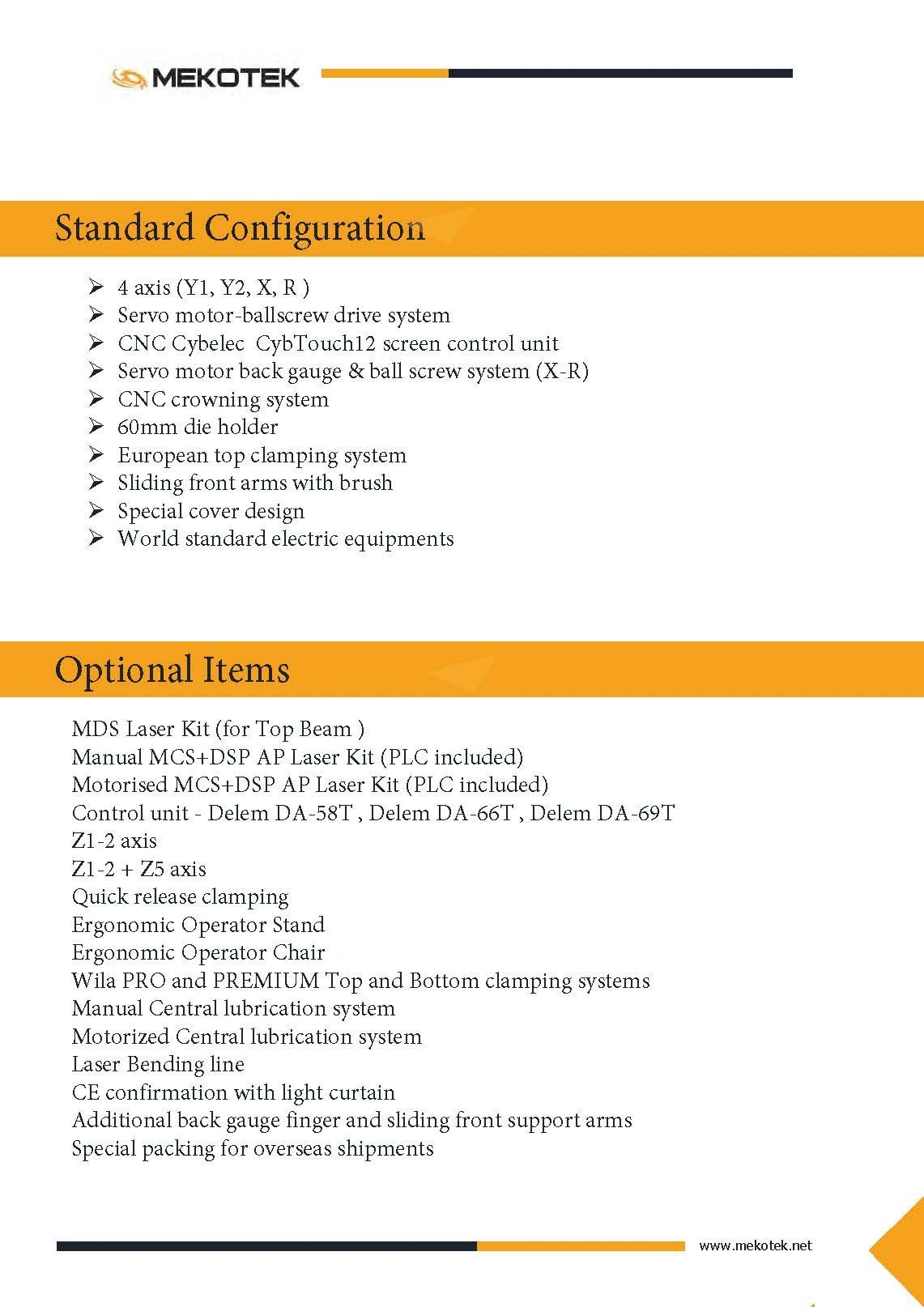

Accessories / Specs :
- 4 axis (Y1, Y2, X, R )
- CNC CybTouch screen control unit
- Motorized back gauge & ball screw system
- Manual crowning system
- 60mm (2-23/64") die holder
- European top clamping system
- Sliding front arms with brush
- Special cover design
- World standard electric equipments
Standard and optional accessories of electric press brakes
Highlights of Press Brakes
Mechanical crowning (V-axis)
German REXROTH hydraulic system
Mechanical crowning (V-axis)
: Mechanical crowning can calculate the required compensation amount for the upper and lower beams based on the load force during workpiece bending, effectively compensating for the deflection deformation to improve bending accuracy.
4 Back gauge fingers
German REXROTH hydraulic system
Mechanical crowning (V-axis)
Unique design of 4 rear fingers is more convenient and flexible, effectively reducing unnecessary manual operations. It can help to position the workpiece in the right site to ensure the high precision and consistency of the bending angle and bending position.
German REXROTH hydraulic system
German REXROTH hydraulic system
German REXROTH hydraulic system
German REXROTH hydraulic system has a high-frequency response (12ms), which is easy to debug. It is designed to provide precise and efficient control of hydraulic power, ensuring smooth and accurate operation of machinery and equipment.
4+V axis CNC bending machine
Laser safety protection device
Laser safety protection device
:
4+V axis CNC bending machine can control four primary axis (X, Y1, Y2, and R) and an additional axis (V, crowning by CNC) to accurately bend and position the workpiece. At the same time，6+V/8+V axis are optional.
Standard DELEM-DA53T system, ESA / CYB system are optional.
Laser safety protection device
Laser safety protection device
Laser safety protection device
The Laser safety protection device fully protects the personal safety of the bending machine operator and avoids the danger caused by the rapid movement of the slider on the machine tool.
