CNC DUAL SPINDLE GUN DRILLING MACHINES
DUAL SPINDLE GUN DRILLING MACHINE
Dual spindle
Ø3.0 - Ø32 mm (0.12 - 1.26 in) drilling diameter range,
1,000 mm (40.0 in) drill depth
Whip guides included,
1,000 mm (40.0 in) max. workpiece length

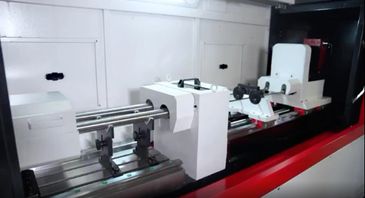

Inside view of 2 spindle gun drilling machine
Can simultaneously process 2 workpieces, suitable for machining coaxial holes on shaft parts
Our Services
Our Services
Gun drilling produces precise holes from 1–50 mm (0.04–2.00 in) and maintains accuracy at high depth-to-diameter ratios. It uses internal coolant, with chips evacuated through a tool groove for clean, accurate drilling.
GUN DRILLING
Gun drilling is widely used in industries like automotive, aerospace, oil & gas, and mold making to produce deep, straight, high-precision holes in components such as crankshafts, fuel injectors, hydraulic cylinders, and molds. It is especially suited for applications requiring tight tolerances, smooth surface finishe
SINGLE SPINDLE GUN DRILLING MACHINE
General view of the machine
Fanuc CNC control,
Surface roughness : Ra 1.6 ~ 6.3 µm, Length-to-Diameter Ratio 100:1
Specs
6,000rpm
Ø3.0 - Ø30 mm (Ø0.118" – Ø1.181") drilling diameter range,
500 mm (20.0 in) drilling depth
Sample application
Sample application
In addition to providing top-of-the-line machinery, we also offer maintenance and repair services to ensure that your equipment is always running smoothly. Our team of experienced technicians can provide on-site repairs or service at our facility.
