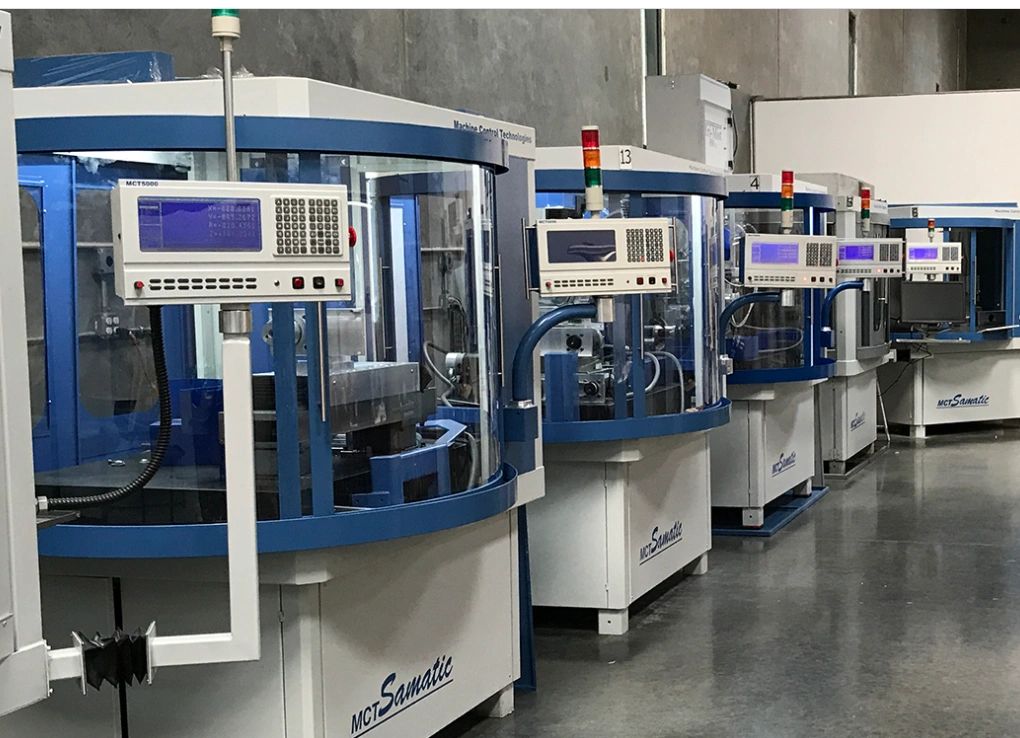

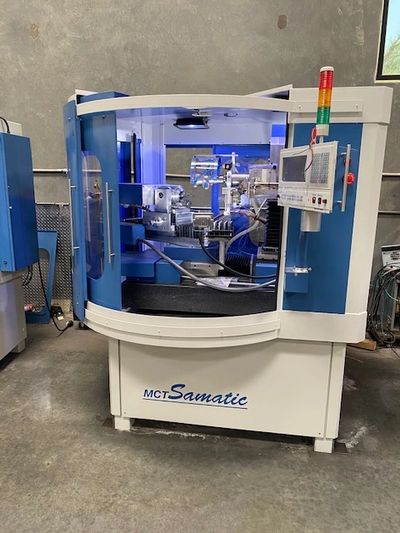

CNC 7 AXIS TOOL /CUTTER/ INSERT GRINDERS

CNC fully enclosed 7 axis with 6 axis CNC controlled complex geometry Tool & Cutter Grinders, including: 5 HP motor spindle, 30 gallon coolant tank, ½ HP pump & filter bag, automatic oiler, air collet closer, 3 color signal tower, built-in conversational end-mill grinding program builder, a special tool built in grinding program, G-Code online and offline programming capabilities, one wheel pack adapter, capable of integrating with a pallet auto-loader and accessories

Machine Spec:

Work Piece Length: 400mm (Max)

Work Piece Diameter: 200mm (Max)

Cutter Material: HSS, Carbide, Ceramic Etc.

Grinding Wheel Speed: 10,000 RPM

Number of Grinding Spindles: 1

Grinding Wheel Diameter: 100mm – 200mm

Number of control Axis: 7 Axis with 6 Axis CNC

Control Axis: X, Y, A, Z, C, B

Accuracy:

Linear Axis: 0.001mm

Rotational Axis: 0.0001 Degrees

Probe System Accuracy: 0.001mm

Control System: MCT6000H CNC

Country of Manufacturing:

Machine Body: MCT USA

Mechanical Parts: MCT USA

Machine Assembly: MCT USA

Spindle: USA, Germany, Japan

Work Head: MCT USA

Control: MCT USA

Servo System: MCT USA

Linear Guideway: USA, Germany, Japan

Ball Screw: USA, Germany, Japan

Motor: USA, Germany

Probe: Heidenhain Germany

Size: 6’ L, 5 ‘W, 6.5’ H

Conditions:

a. Operation Requirements: Capable of Manufacturing/Grinding/Sharpening different types of

HSS, Carbide, Ceramic and other hard tools and cutters. The cutters/tools are cylindrical form

tools, twist drill, flute iso porting tool, end mill etc.

b. The machine is capable of automatic gauging, calibration, and offsetting

c. The machine has automatic clamping of rotationally symmetrical tools/cutters and indexable

inserts.

d. Standard, additional, optional, and special accessories/items/attachments:

Auto Loader with 2 sizes of Magazines and Software

High Efficiency Mist Collector for model MCT6000H

8” x ¼” x ¼”T diamond OD Grinding Wheel

6” x 1/2” x ¼”T diamond double sided face Grinding Wheel

4” x ¼” x ¼”T diamond flat Grinding Wheel

4” x 45 degree x ¼”T diamond OD Grinding Wheel

4” x 25 degree x ¼”T diamond OD Grinding Wheel

3-¾” x ¼”T diamond cup Grinding Wheel

3” Wheel Arbor
