BTA DEEP HOLE DRILLING MACHINES
BTA DEEP HOLE DRILLING MACHINE
Solid drilling, Trepanning hole, Rough boring (Ra6.3-Ra12.5), Fine boring (Ra3.2-Ra6.3)

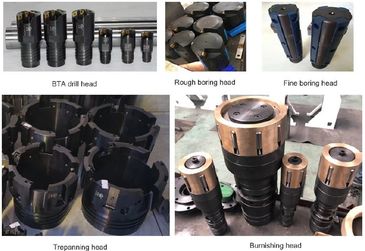

- BTA (Boring and Trepanning Association) drill heads are used for deep hole drilling with high efficiency. They use internal coolant delivery and chip evacuation through the tube, allowing for straight, accurate holes with excellent surface finish.
- Rough boring heads remove large amounts of material quickly after drilling.
- Fine boring he
- BTA (Boring and Trepanning Association) drill heads are used for deep hole drilling with high efficiency. They use internal coolant delivery and chip evacuation through the tube, allowing for straight, accurate holes with excellent surface finish.
- Rough boring heads remove large amounts of material quickly after drilling.
- Fine boring heads follow up with precision adjustments to achieve tight tolerances and improved surface quality.
- Trepanning heads are designed to cut annular grooves, leaving a solid core. This method reduces material waste and cutting force, making it ideal for large-diameter holes.
- Burnishing heads are used for final surface finishing. Instead of cutting, they plastically deform the surface using rollers, resulting in:
- Mirror-like surface finish
- Improved hardness and fatigue resistance
- Better dimensional accuracy

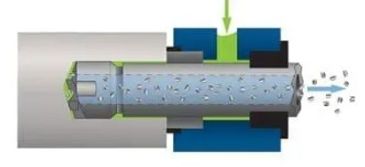

SCHEMATIC OF BTA DRILLING
SCHEMATIC OF BTA DRILLING

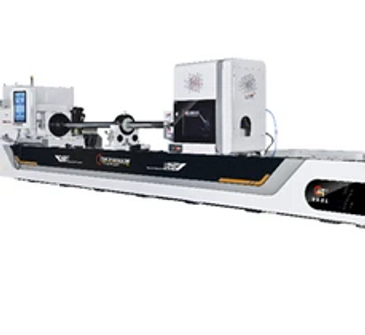

Model: TSK 2150 x 3000
High-Quality Machinery
The TSK2150 × 3000mm is a heavy-duty deep hole drilling and boring machine purpose-built for processing cylindrical workpieces requiring deep internal holes with high precision and consistent surface quality. The machine bed offers exceptional rigidity and long-term accuracy retention, built for demanding production environments.
Equipped with two sets of adjustable roller center rests and V-shaped workpiece carriers, the TSK2150 accommodates large-diameter workpieces with ease. The wide-range spindle speed, AC servo-driven feed system, and servo-tightening oil pressure head make this machine adaptable to all major deep hole machining methods — simply by changing the cutting tool.
Technical Specs
Drilling Diameter :Ø30 – Ø150 mm
Boring Diameter : Ø40 – Ø500 mm
Max. Processing Depth : 3,000 mm
Workpiece OD Range : Ø100 – Ø700 mm
Spindle Speed : 4 – 440 RPM
Spindle Motor : 30 kW
Max. Output Torque : 9,120 Nm
Machine Weight : ~39 Tons
